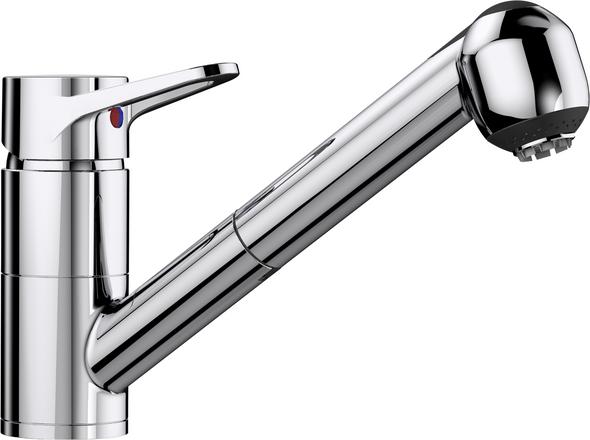

BLANCOORION-S, brass galvanic, chrome, Low pressure

BLANCOORION-S, brass galvanic, chrome, Low pressure

                    Article Number
                    511272


Mixer tap available from 01.02.1999 until 31.01.2020!
no longer available since 03/2020

Article-Version: Article also available in other versions!

BLANCOORION-S (Mix 3010 S), brass galvanic, chrome, Low pressure

Added to Your Shopping Cart

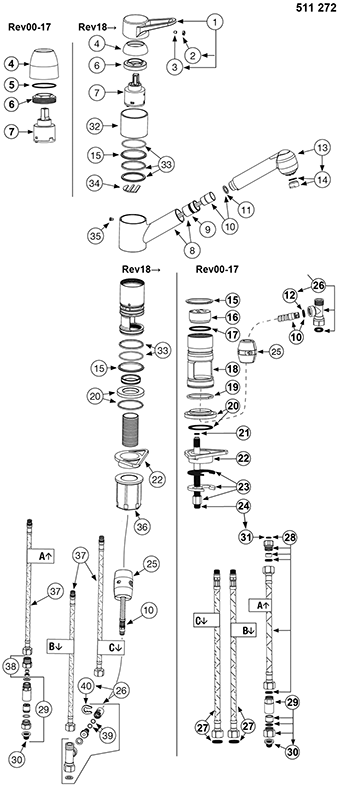

Spare Parts

Valid From	Name
Position Number	1	Art. ID	122640 (18 / S)	Valid From	10/2016	Name	Lever ORION chrome new complete MZ, chrome
Position Number		Art. ID	127979 (0 / A)	Valid From	06/2001	Name	Lever ORION chrome complete with screw and cap, chrome
Position Number		Art. ID	126505 (0 / A)	Valid From	02/1999	Name	Lever with cap ORION chrome complete, chrome
Position Number		Art. ID	126500 (0 / A)	Valid From	02/1999	Name	Cover for lever ORION chrome, chrome
Position Number		Art. ID	126504 (0 / A)	Valid From	02/1999	Name	O-ring for lever cap ORION
Position Number	2	Art. ID	126959	Valid From	06/2001	Name	Color cap lever MZ
Position Number		Art. ID	128351	Valid From	02/1999	Name	Color cap lever PHOENIX-S blue/red
Position Number		Art. ID	126510	Valid From	02/1999	Name	Color cap ATOS-S, ORION blue/red (replaced by 128351)
Position Number	3	Art. ID	116803	Valid From	06/2001	Name	Hex socket screw for lever M5x6 2,5 mm AV
Position Number		Art. ID	116503	Valid From	06/2001	Name	Screw lever conical 2,5 mm MZ (repalced by 116803)
Position Number		Art. ID	126960	Valid From	06/2001	Name	Screw lever (replaced by 116503) MZ
Position Number		Art. ID	126509	Valid From	02/1999	Name	Screw for lever ATOS-S, ORION
Position Number		Art. ID	139188	Valid From	02/1999	Name	Box spanner hex key AF 2,5 mm
Position Number	4	Art. ID	128027 (18 / S)	Valid From	10/2016	Name	Cover ring ORION chrome plastic
Position Number		Art. ID	127983 (0 / A)	Valid From	06/2001	Name	Cover ring ORION-S chrome modified version
Position Number		Art. ID	127064 (0 / A)	Valid From	02/1999	Name	Cover ring ORION-S chrome
Position Number		Art. ID	128241 (0 / A)	Valid From	02/1999	Name	Assembly tool for cover ring ORION-S
Position Number	5	Art. ID	127998	Valid From	06/2001	Name	O-ring 41 x 1,78 mm NBR 75 SH
Position Number	6	Art. ID	127375 (18 / S)	Valid From	10/2016	Name	Locknut cartridge ORION, PALLAS
Position Number		Art. ID	127246 (0 / A)	Valid From	06/2001	Name	Locknut cartridge PALLAS-S, ORION-S
Position Number		Art. ID	126512 (0 / A)	Valid From	02/1999	Name	Locknut cartridge ATOS-S, ORION
Position Number		Art. ID	127433	Valid From	02/1999	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	7	Art. ID	121492	Valid From	02/1999	Name	Cartridge LP 40 mm KE, blue, Low pressure
Position Number		Art. ID	120089	Valid From	02/1999	Name	Cartridge 40 mm LP KI (replaced by 121492), blue, Low pressure
Position Number		Art. ID	116646	Valid From	02/1999	Name	Cartridge ND (replaced by 120089) MZ, grey, Low pressure
Position Number		Art. ID	127247	Valid From	02/1999	Name	Cartridge LP (replaced by 116646), blue, Low pressure
Position Number		Art. ID	127063	Valid From	02/1999	Name	Cartridge LP (replaced by 116646), blue, Low pressure
Position Number	8	Art. ID	122643 (18 / S)	Valid From	10/2016	Name	Outer body ORION-S chrome new MZ
Position Number		Art. ID	118971 (8 / I)	Valid From	06/2001	Name	Outer body ORION-S ZAMAK chrome since II/2010 MZ
Position Number		Art. ID	127994 (0 / A)	Valid From	06/2001	Name	Outer body ORION-S chrome with hole (replace 118971)
Position Number		Art. ID	126561 (0 / A)	Valid From	02/1999	Name	Outer body ORION-S chrome
Position Number	9	Art. ID	127991 (0 / A)	Valid From	06/2001	Name	Fitting piece spray head ORION, PALLAS black
Position Number		Art. ID	122642 (18 / S)	Valid From	10/2016	Name	Fitting piece spray head ORION-S neu MZ
Position Number		Art. ID	126935 (0 / A)	Valid From	02/1999	Name	Fitting piece spray head black
Position Number		Art. ID	126560 (0 / A)	Valid From	02/1999	Name	Fitting piece spray head ORION-S LP black (replaced by 126935)
Position Number	10	Art. ID	122641 (18 / S)	Valid From	10/2016	Name	Shower hose 120 cm nylon complete MZ
Position Number		Art. ID	125763 (0 / A)	Valid From	06/2001	Name	Spray pipe complete with seals and o-ring 150 cm metal HA
Position Number		Art. ID	126934 (0 / A)	Valid From	06/2001	Name	Spray hose ATOS,COMET,ORION,PALLAS,WEGA 150 cm metal (replaced by 125763)
Position Number		Art. ID	126559 (0 / A)	Valid From	02/1999	Name	Spray hose ATOS-S , ORION-S 120 cm metal (replaced by 126934)
Position Number	11	Art. ID	116490	Valid From	02/1999	Name	Seal spray hose top 19 x 14 x 2 mm MZ
Position Number		Art. ID	125166	Valid From	02/1999	Name	Seal for spray head top (replaced by 116490) MZ
Position Number	12	Art. ID	116496	Valid From	02/1999	Name	Gasket 8,0x13,3x2,0mm EPDM NE
Position Number		Art. ID	125167	Valid From	02/1999	Name	Seal flexible pipe bottom (replaced by 116496) MZ
Position Number	13	Art. ID	127999	Valid From	06/2001	Name	Spray head ORION-S LP chrome complete MZ galvanic, chrome, Low pressure
Position Number		Art. ID	127062	Valid From	02/1999	Name	Spray head ORION-S LP chrome complete galvanic, chrome, Low pressure
Position Number	14	Art. ID	127397	Valid From	06/2001	Name	Jet splitter LP OT M24x1 AF22 chrome AM, Low pressure Spareparts
Position Number		Art. ID	127195	Valid From	02/1999	Name	Jet splitter LP ATOS-S, Low pressure
Position Number		Art. ID	117501	Valid From	01/1996	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	06/2001	Name	Key for jet regulator/-splitter (1 piece)
Position Number	15	Art. ID	127271	Valid From	06/2001	Name	Teflon ring ORION-S, PALLAS-S
Position Number		Art. ID	126555	Valid From	02/1999	Name	Teflon ring ORION-S
Position Number	16	Art. ID	127268	Valid From	06/2001	Name	Cartridge seat ORION-S, PALLAS-S
Position Number	17	Art. ID	127270	Valid From	06/2001	Name	O-ring ORION-S, PALLAS-S
Position Number		Art. ID	126554	Valid From	02/1999	Name	O-ring ATOS-S, COMET-S, ORION-S
Position Number		Art. ID	117933	Valid From	02/1999	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	02/1999	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	18	Art. ID	127269	Valid From	06/2001	Name	Inner body ORION-S, PALLAS-S
Position Number		Art. ID	126565	Valid From	02/1999	Name	Inner body ORION-S
Position Number		Art. ID	127191	Valid From	02/1999	Name	Hose guide ATOS-S, COMET-S, ORION-S
Position Number	19	Art. ID	127272	Valid From	06/2001	Name	Teflon ring ORION-S, PALLAS-S

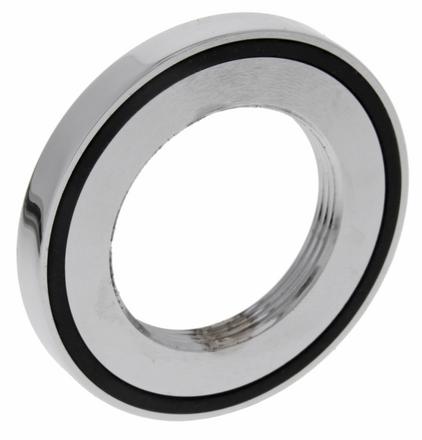

Position Number	20	Art. ID	122644 (18 / S)	Valid From	10/2016	Name	Base ORION-S new chrome with seal MZ
Position Number		Art. ID	127273 (0 / A)	Valid From	06/2001	Name	Base ORION-S, PALLAS-S chrome with seal
Position Number	21	Art. ID	127274	Valid From	06/2001	Name	O-ring threaded pipe ORION, PALLAS MZ
Position Number		Art. ID	126544	Valid From	02/1999	Name	Seal for threaded pipe ATOS-S
Position Number	22	Art. ID	126945	Valid From	06/2001	Name	Stabilization triangle mixer taps BLANCO
Position Number		Art. ID	126531	Valid From	02/1999	Name	Stabilising plate (replaced by 126945)
Position Number	23	Art. ID	116400	Valid From	05/2007	Name	Assembly set ORION-S, PALLAS-S MZ
Position Number		Art. ID	127277	Valid From	06/2001	Name	Assembly set ORION-S, PALLAS-S
Position Number		Art. ID	126571	Valid From	02/1999	Name	Assembly set ATOS-S, ORION-S
Position Number		Art. ID	126546	Valid From	02/1999	Name	Seal ORION-S, ORION LP shaped (replaced by 126549)
Position Number		Art. ID	126547	Valid From	02/1999	Name	Flange ORION-S, ORION ND
Position Number		Art. ID	126548	Valid From	02/1999	Name	Assembly nut ATOS-S LP, ORION
Position Number	24	Art. ID	127275	Valid From	06/2001	Name	Thread rod ORION-S, PALLAS-S
Position Number		Art. ID	126566	Valid From	02/1999	Name	Thread rod COMET-S, ORION-S
Position Number	25	Art. ID	122548 (18 / S)	Valid From	10/2016	Name	Weight für shower hose (223g)KP
Position Number		Art. ID	126569 (0 / A)	Valid From	02/1999	Name	Spring fastener ATOS-S, COMET-S, ORION-S
Position Number		Art. ID	124881	Valid From	06/2001	Name	Weight for shower hose (445g)
Position Number		Art. ID	123888	Valid From	06/2001	Name	Weight for shower hose (420g) AV (replaced by 124881)
Position Number		Art. ID	128707 (0 / A)	Valid From	06/2001	Name	Weight (221g) BL(NF) (repalced by 123888)
Position Number		Art. ID	126570 (0 / A)	Valid From	02/1999	Name	Spring ATOS-S, COMET-S, ORION-S
Position Number		Art. ID	126947 (0 / A)	Valid From	06/2001	Name	Weight ORION, PALLAS, SIRIUS, WEGA (246g) (replaced by 125764 or 128707)

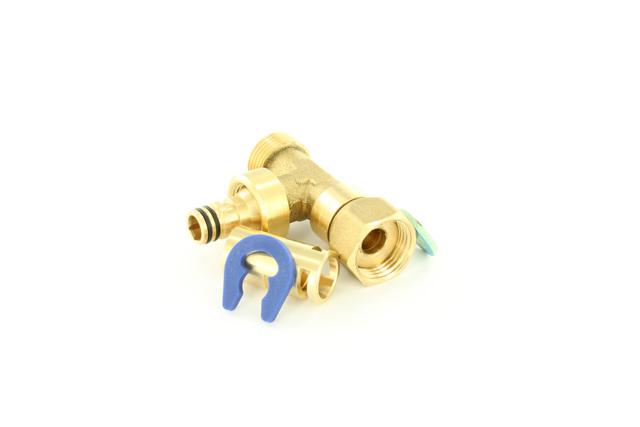

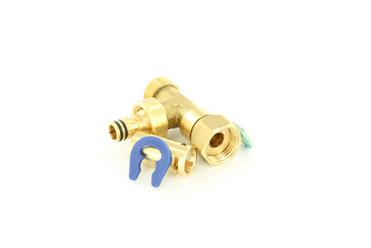

Position Number	26	Art. ID	121583 (18 / S)	Valid From	10/2016	Name	T-connector NEA-S, ORION-S ND with seals MZ
Position Number		Art. ID	127281 (0 / A)	Valid From	06/2001	Name	T-connector with gaskets IG 3/8", IG M15x1 and AG 3/8" BL
Position Number		Art. ID	125827 (0 / A)	Valid From	02/1999	Name	T-piece S LP ARGON, ELIPSO, MERKUR (replace by 127281) HA
Position Number		Art. ID	126572 (0 / A)	Valid From	02/1999	Name	T-piece LP ATOS-S, ORION-S (replaced by 125827)
Position Number	27	Art. ID	121656 (5 / F)	Valid From	05/2007	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913 (5 / F)	Valid From	05/2007	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	116383 (5 / F)	Valid From	05/2007	Name	Flexible hose with integrated seal 50 cm metal M10x1 (replaced by 119913) MZ
Position Number		Art. ID	127276 (0 / A)	Valid From	06/2001	Name	Flexible hose without seal LP ORION-S, PALLAS-S 50 cm metal (replaced by 116383)
Position Number		Art. ID	121656 (0 / A)	Valid From	02/1999	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913 (0 / A)	Valid From	02/1999	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)
Position Number		Art. ID	127061 (0 / A)	Valid From	02/1999	Name	Flexible hose without seal, 45 cm metal M10x1 (replaced by 119913) CR
Position Number	28	Art. ID	116385 (5 / F)	Valid From	05/2007	Name	Flexible hose A white flow regulator complete with seal 41 cm metal MZ
Position Number		Art. ID	127279	Valid From	06/2001	Name	Flexible hose net complete without seal LP ORION, PALLAS 41 cm metal (replaced by 116385)
Position Number		Art. ID	126552	Valid From	02/1999	Name	Flexible hose LP COMET-S, ORION 41 cm metal
Position Number		Art. ID	126550	Valid From	02/1999	Name	Connection thread rod ORION LP
Position Number		Art. ID	126551	Valid From	02/1999	Name	Flow regulator LP ATOS, COMET, ORION
Position Number	29	Art. ID	119534 (9 / J)	Valid From	06/2001	Name	Non-return valve complete with gasket/mud guard MZ
Position Number		Art. ID	127280 (8 / I)	Valid From	06/2001	Name	Double non-return valve + fiber seal (replaced by 119534)
Position Number		Art. ID	126143	Valid From	02/1999	Name	Double non-return valve fiber sael ATOS,COMET,PALLAS
Position Number		Art. ID	126573	Valid From	02/1999	Name	Non-return valve connection ORION-S LP
Position Number		Art. ID	128741	Valid From	02/1999	Name	Non-return valve Ø 14mm NE, blue
Position Number		Art. ID	126574	Valid From	02/1999	Name	Non-return valve LP ATOS-S, ORION-S (replaced by 128741), blue
Position Number	30	Art. ID	118840	Valid From	01/2011	Name	Filter gasket for 3/8" corner valve
Position Number		Art. ID	127401	Valid From	06/2001	Name	Seal flexible pipe 3/8" (1 piece)
Position Number		Art. ID	127068	Valid From	02/1999	Name	Seal flexible pipe ATOS-S, ORION-S (replaced by 127401)
Position Number		Art. ID	126534	Valid From	02/1999	Name	Seal flexible pipe (replaced by 127068)
Position Number	31	Art. ID	120876 (12 / M)	Valid From	06/2013	Name	Seal WEGA/ ORION LP MZ
Position Number		Art. ID	128245 (0 / A)	Valid From	02/2009	Name	Copper seal Ø= 9,7 mm
Position Number	32	Art. ID	122647 (18 / S)	Valid From	10/2016	Name	Cartridge cover cylinder ORION-S chrome
Position Number	33	Art. ID	122648 (18 / S)	Valid From	10/2016	Name	Set of rings and seals ORION-S MZ
Position Number	34	Art. ID	123710 (18 / S)	Valid From	10/2016	Name	Locking disc inox NEA-S ORION-S, WEGA-S
Position Number		Art. ID	121559 (18 / S)	Valid From	10/2016	Name	Locking disc NEA,ORION,WEGA MZ (replaced by 123710)
Position Number	35	Art. ID	120725 (18 / S)	Valid From	10/2016	Name	Screw M5x7 MZ
Position Number	36	Art. ID	120699 (18 / S)	Valid From	10/2016	Name	Assembly nut M33 (black) MZ

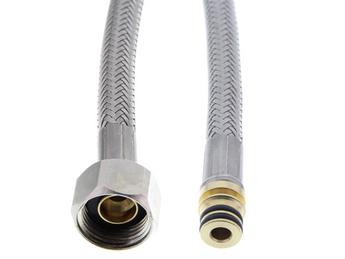

Position Number	37	Art. ID	122649 (18 / S)	Valid From	10/2016	Name	Flexible hose A w.integr. gasket 52cm metal MZ

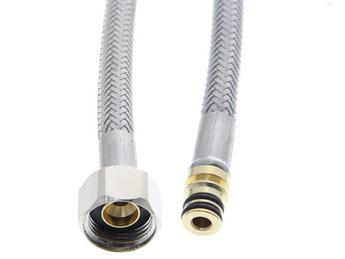

Position Number		Art. ID	122650 (18 / S)	Valid From	10/2016	Name	Flexible hose B with integr. gasket 52 cm metal MZ

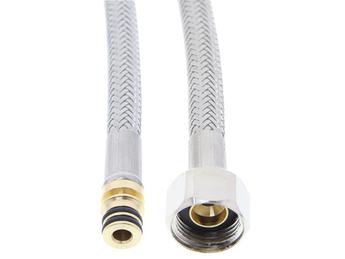

Position Number		Art. ID	122651 (18 / S)	Valid From	10/2016	Name	Flexible hose C w. integr. gasket 52cm metal MZ
Position Number	38	Art. ID	121630 (18 / S)	Valid From	10/2016	Name	Flow regulator without gasket MZ
Position Number	39	Art. ID	118362 (18 / S)	Valid From	10/2016	Name	O-rings for T-piece (2 pieces) WEGA-S MZ
Position Number	40	Art. ID	118352 (18 / S)	Valid From	10/2016	Name	Clip bottom for spray hose MZ
Position Number		Art. ID	513383	Valid From	02/1999	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	02/1999	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/1996	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	02/1999	Name	Flexible sealing tape
