BLANCOORION-S (Mix 3010 S), brass galvanic, brown, Low pressure

BLANCOORION-S (Mix 3010 S), brass galvanic, brown, Low pressure

                    Article Number
                    137964


Mixer tap available from 01.01.1996 until 31.01.1999!
no longer available since 11/2002

Article-Version: Article also available in other versions!

BLANCOORION-S, brass galvanic, white, Low pressure

Added to Your Shopping Cart

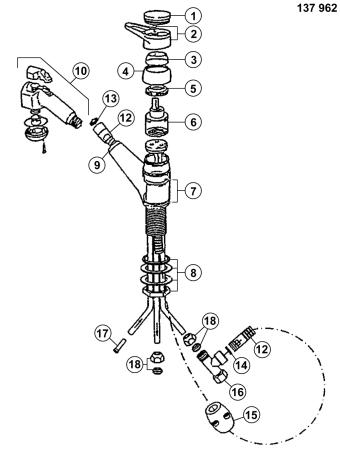

Spare Parts

Valid From	Name
Position Number	1	Art. ID	125155	Valid From	01/1996	Name	Cover cap braun MZ 3010-1-B, brown
Position Number	2	Art. ID	125905	Valid From	01/1996	Name	Lever complete with screw brown MZ, brown

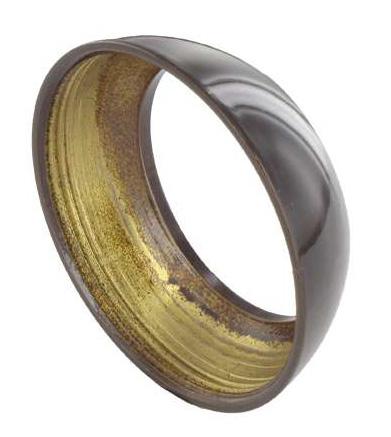

Position Number	3	Art. ID	125909	Valid From	01/1996	Name	Cartridge cover ring A M24x3 brown MZ
Position Number	4	Art. ID	125913	Valid From	01/1996	Name	Cartridge cover ring B M47x3 brown MZ
Position Number	5	Art. ID	125915	Valid From	01/1996	Name	Lock ring cartridge ORION/-S MZ
Position Number		Art. ID	127433	Valid From	01/1996	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121492	Valid From	01/1996	Name	Cartridge LP 40 mm KE, blue, Low pressure
Position Number		Art. ID	120089	Valid From	01/1996	Name	Cartridge 40 mm LP KI (replaced by 121492), blue, Low pressure
Position Number		Art. ID	116646	Valid From	01/1996	Name	Cartridge ND (replaced by 120089) MZ, grey, Low pressure
Position Number		Art. ID	127247	Valid From	01/1996	Name	Cartridge LP (replaced by 116646), blue, Low pressure
Position Number		Art. ID	125916	Valid From	01/1996	Name	Cartridge LP (replaced by 127247) MZ, blue, Low pressure
Position Number	7	Art. ID	125158	Valid From	01/1996	Name	O-ring 3010-9 MZ

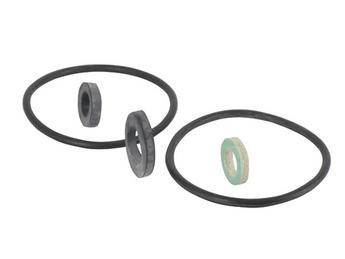

Position Number		Art. ID	125458	Valid From	01/1996	Name	Seal set for outer body ORION-S
Position Number		Art. ID	117933	Valid From	01/1996	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/1996	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	8	Art. ID	125159	Valid From	01/1996	Name	Assembly set URANUS, WEGA-S complete
Position Number	9	Art. ID	125891	Valid From	01/1996	Name	Fitting piece spray head ORION-S brown MZ
Position Number	10	Art. ID	127999	Valid From	01/1996	Name	Spray head ORION-S LP chrome complete MZ galvanic, chrome, Low pressure
Position Number		Art. ID	128003	Valid From	01/1996	Name	Spray head ORION-S LP brown complete (replaced by 127999) galvanic, brown, Low pressure
Position Number		Art. ID	125924	Valid From	01/1996	Name	Spray head ND brown MZ galvanic, brown, Low pressure
Position Number	12	Art. ID	125763	Valid From	01/1996	Name	Spray pipe complete with seals and o-ring 150 cm metal HA
Position Number		Art. ID	126934	Valid From	01/1996	Name	Spray hose ATOS,COMET,ORION,PALLAS,WEGA 150 cm metal (replaced by 125763)
Position Number		Art. ID	125165	Valid From	01/1996	Name	Spray pipe 150 cm metal 3010 (replaced by 126934) MZ
Position Number	13	Art. ID	116490	Valid From	01/1996	Name	Seal spray hose top 19 x 14 x 2 mm MZ
Position Number		Art. ID	125166	Valid From	01/1996	Name	Seal for spray head top (replaced by 116490) MZ
Position Number	14	Art. ID	116496	Valid From	01/1996	Name	Gasket 8,0x13,3x2,0mm EPDM NE
Position Number		Art. ID	125167	Valid From	01/1996	Name	Seal flexible pipe bottom (replaced by 116496) MZ
Position Number	15	Art. ID	124881	Valid From	01/1996	Name	Weight for shower hose (445g)
Position Number		Art. ID	123888	Valid From	01/1996	Name	Weight for shower hose (420g) AV (replaced by 124881)
Position Number		Art. ID	128707	Valid From	01/1996	Name	Weight (221g) BL(NF) (repalced by 123888)
Position Number		Art. ID	126947	Valid From	01/1996	Name	Weight ORION, PALLAS, SIRIUS, WEGA (246g) (replaced by 125764 or 128707)
Position Number		Art. ID	125168	Valid From	01/1996	Name	Weight 3010 (replaced by 126947) MZ

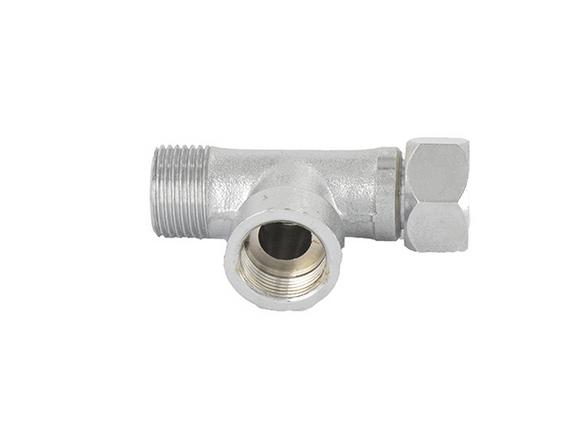

Position Number	16	Art. ID	127281	Valid From	01/1996	Name	T-connector with gaskets IG 3/8", IG M15x1 and AG 3/8" BL
Position Number		Art. ID	125974	Valid From	01/1996	Name	T-piece MZ (replaced by 127281)
Position Number	17	Art. ID	125975	Valid From	01/1996	Name	Choke MZ, white
Position Number	18	Art. ID	125976	Valid From	01/1996	Name	Squeeze screwing 3/8" D8.3 MZ
Position Number		Art. ID	513383	Valid From	01/1996	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/1996	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/1996	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	01/1996	Name	Flexible sealing tape
