Fitting set 2 x 3.5" SUPREME,WAVE,YPSILON (replaced by 223145)

Skip to content Jump to the navigation menu

                    Article Number
                    212482


no longer available since 12/2009

Added to Your Shopping Cart

Spare Parts

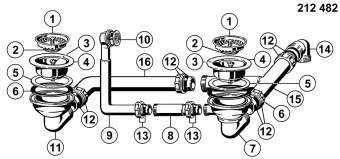

Valid From	Name
Position Number	1	Art. ID	125654	Valid From	01/2000	Name	Basket strainer 3.5" no pin Ø=80 mm (24 drainage slots) VI Spareparts
Position Number	2	Art. ID	117498	Valid From	01/2000	Name	Seal for basket strainer Ø = 35 / 42 mm silicon (revised version) VI
Position Number		Art. ID	901992	Valid From	01/2000	Name	Seal for basket strainer (replaced by 117498)
Position Number	3	Art. ID	125658	Valid From	01/2000	Name	Countersink screw valve M6 Length=35 mm VI
Position Number		Art. ID	125649	Valid From	01/2000	Name	Countersink screw M6 length = 46,5 mm VI (replaced by 125658)
Position Number	4	Art. ID	128651	Valid From	01/2000	Name	Valve goblet countersink screw stainless steel VI
Position Number	5	Art. ID	125570	Valid From	01/2000	Name	Seal valve goblet 111.5 x 85 x 1 VI
Position Number	6	Art. ID	125661	Valid From	01/2000	Name	Seal drain valve 105 x 90 x 4 VI
Position Number	7	Art. ID	128814	Valid From	01/2000	Name	Drain valve 3.5" with overflowconnection VI, white
Position Number		Art. ID	125641	Valid From	01/2000	Name	Sealing washer for overflow d=25 mm VI
Position Number	8	Art. ID	125552	Valid From	01/2000	Name	Extension pipe for overflow bow Ø 25 mm, length: 90 mm
Position Number		Art. ID	125667	Valid From	01/2000	Name	Extension overflow Ø 25 mm, length: 115 mm (replaced by 125552) VI
Position Number	9	Art. ID	125666	Valid From	01/2000	Name	Angled pipe overflow Ø 25 mm, length: 150 x 220 mm VI
Position Number	10	Art. ID	125351	Valid From	01/2000	Name	Overflow round complete with outflow pipe VI
Position Number	11	Art. ID	125717	Valid From	01/2000	Name	Drain valve 3.5" (replaced by 125814+125641+125668) VI, white
Position Number	12	Art. ID	125669	Valid From	01/2000	Name	Cap nut with seal Ø=40 mm VI
Position Number	13	Art. ID	125668	Valid From	01/2000	Name	Cap nut Ø=25 mm with seal VI
Position Number	14	Art. ID	118823	Valid From	01/2000	Name	Drain angle to siphon Ø 40 mm, length: 42 x 70 mm EB
Position Number		Art. ID	125670	Valid From	01/2000	Name	Drain angle to siphon 1,5" Ø 40 mm length: 70 mm (replaced by 118823 )VI
Position Number	15	Art. ID	125671	Valid From	01/2000	Name	T-piece Ø=40 mm x 230 mm complete VI
Position Number	16	Art. ID	116729	Valid From	01/2000	Name	L-connection without thread Ø 40 mm, length: 90 x 340 mm VI
Position Number		Art. ID	116744	Valid From	01/2000	Name	L-connection Ø 40 mm, length: 90 x 240 mm (replaced by 116729)
Position Number	99	Art. ID	222441	Valid From	01/2000	Name	Retrofit set 1 x 3.5'' with turning handle chrome with overflow Spareparts
Position Number		Art. ID	222440	Valid From	01/2000	Name	Retrofit set 2 x 3,5" with doubleturning handle chrome with overflow Spareparts
Position Number		Art. ID	218941	Valid From	01/2000	Name	Retrofit set incl. pull knob plastic chromed Spareparts
Position Number		Art. ID	223162	Valid From	01/2000	Name	Retrofit set (without pull knob) VI Spareparts
Position Number		Art. ID	225112	Valid From	01/2000	Name	Pull pop-up control round plastic
Position Number		Art. ID	221339	Valid From	01/2000	Name	Pop-up control round chrome (metal) Spareparts
Position Number		Art. ID	221336	Valid From	01/2000	Name	Pop-up control round stainless steel finish Spareparts
Position Number		Art. ID	226540	Valid From	01/2000	Name	Pull up control round stainless steel
Position Number		Art. ID	222115	Valid From	01/2000	Name	Pull pop-up control round stainless steel satin polish Spareparts
Position Number		Art. ID	222118	Valid From	01/2000	Name	Pull pop-up control round stainless steel brushed finish Spareparts
Position Number		Art. ID	221901	Valid From	01/2000	Name	Pull pop-up control LEVOS chrome Spareparts
Position Number		Art. ID	221940	Valid From	01/2000	Name	Pull pop-up control LEVOS stainless steel satin polish Spareparts
Position Number		Art. ID	221941	Valid From	01/2000	Name	Pull pop-up control LEVOS stainless steel brushed finish Spareparts
Position Number		Art. ID	221902	Valid From	01/2000	Name	Pull pop-up control QUADRIS chrome Spareparts
Position Number		Art. ID	221942	Valid From	01/2000	Name	Pull pop-up control BLANCO QUADRIS stainless steel satin polish Spareparts
Position Number		Art. ID	221943	Valid From	01/2000	Name	Pull pop-up control QUADRIS stainless steel brushed finish Spareparts
Position Number		Art. ID	521294	Valid From	01/2000	Name	Pull pop-up control LIVIA chrome Spareparts
Position Number		Art. ID	521295	Valid From	01/2000	Name	Pull pop-up control LIVIA antique brass Spareparts
Position Number		Art. ID	521296	Valid From	01/2000	Name	Zug-Ablauffernbedienung LIVIA mangan Spareparts
