Fitting set MES | BLANCO Shop

Fitting set MES

                    Article Number
                    137187


no longer available since 09/2009

Added to Your Shopping Cart

Spare Parts

Valid From	Name

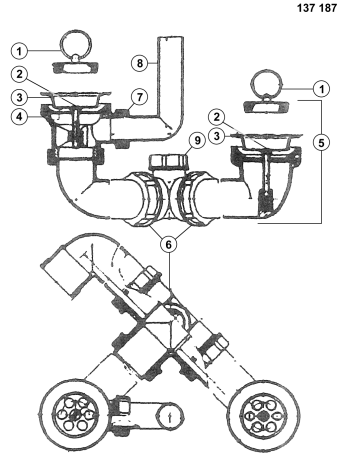

Position Number	1	Art. ID	901998	Valid From	01/1985	Name	Rubber plug 1.5" black with ring Ø 45 mm 10°
Position Number	2	Art. ID	125658	Valid From	01/1985	Name	Countersink screw M6, length 35 mm
Position Number	3	Art. ID	116668	Valid From	01/1985	Name	Drain strainer 1.5" countersunk screw
Position Number	4	Art. ID	125638	Valid From	01/1985	Name	Seal drain valve 58 x 80 x 10 mm
Position Number	5	Art. ID	116068	Valid From	01/1985	Name	Drain valve 1.5" with drain bend and plug, white
Position Number	6	Art. ID	125669	Valid From	01/1985	Name	Union nut with seal Ø 40 mm
Position Number	7	Art. ID	125668	Valid From	01/1985	Name	Union nut with seal Ø 25 mm
Position Number	8	Art. ID	125666	Valid From	01/1985	Name	Angle pipe overflow Ø 25 mm, length 150 x 220 mm
Position Number	99	Art. ID	503169	Valid From	01/1985	Name	Fitting set with bowden cable MULTI cappuchino Spareparts

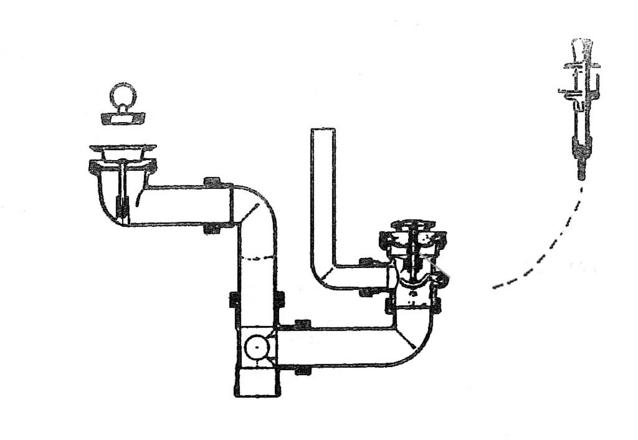

Position Number		Art. ID	503171	Valid From	01/1985	Name	Fitting set with bowden cable MULTI brown Spareparts

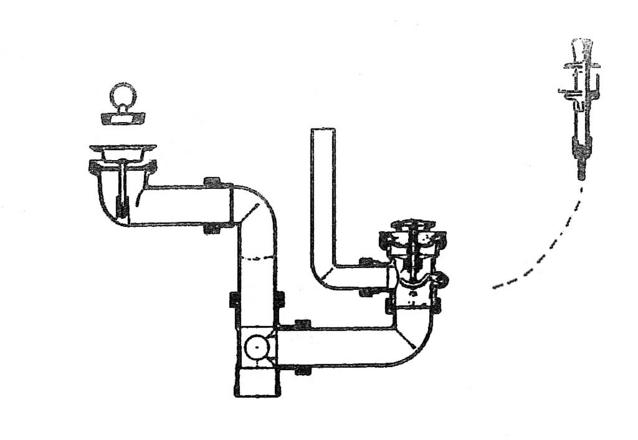

Position Number		Art. ID	503172	Valid From	01/1985	Name	Fitting set with bowden cable MULTI white Spareparts
