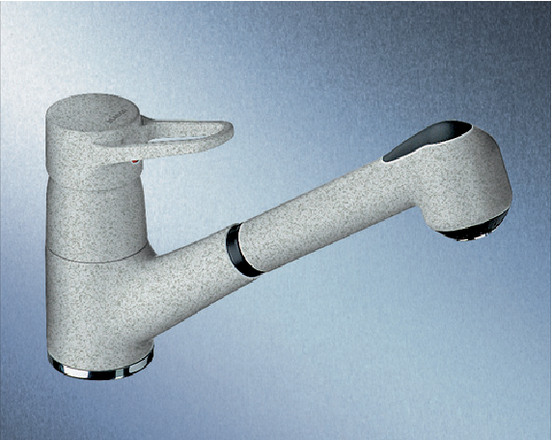

BLANCO PALLAS-S, brass SILGRANIT-Look, perla, Low pressure
Article Number 511469
Mixer tap available from 01.02.2000 until 31.08.2002!
no longer available since 08/2003
1 127235 01/2000 Lever pearl, perla
2 126959 01/2000 Color cap lever
3 116803 01/2000 Screw lever M5x6 hexagon socket 2.5 mm
116503 01/2000 Screw lever M5x6 conical 2.5 mm (replaced by 116803)
126960 01/2000 Screw lever (replaced by 116503)
139188 01/2000 Hex key SW 2.5 mm

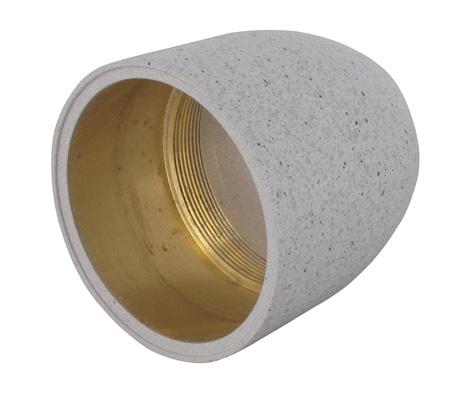

4 127245 01/2000 Cover ring perla
5 127246 01/2000 Cartridge lock nut
127433 01/2000 Cartridge spannerhex SW 30 mm and 36 mm
6 121492 01/2000 Kartusche ND 40 mm, blue, Low pressure
120089 01/2000 Kartusche ND 40 mm (ersetzt durch 121492), blue, Low pressure
116646 01/2000 Kartusche ND 40 mm (ersetzt durch 120089), grey, Low pressure
127247 01/2000 Kartusche ND 40 mm (ersetzt durch 116646), blue, Low pressure

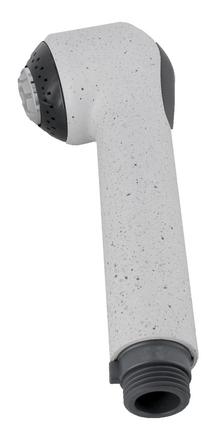

7 127257 01/2000 Spray head LP perla SILGRANIT-Look, perla, Low pressure
8 125763 01/2000 Spray hose 150 cm metal with gaskets and O-ring
126934 01/2000 Spray hose 150 cm metal (replaced by 125763)
9 127991
(3 / D)
07/2001 Fitprewterg piece black
126935
(0 / A)
01/2000 Fitprewterg piece black

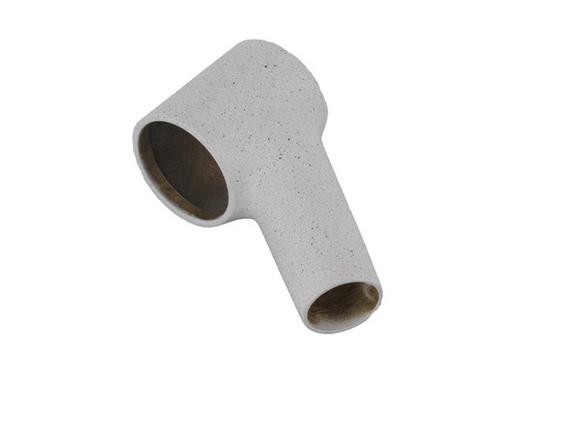

10 128113 07/2001 Outer body pearl with hole
127267 01/2000 Outer body pearl
12 127269 01/2000 Inner body
13 127271 01/2000 Teflon ring
14 127270 01/2000 O-ring
117933 01/2000 Tap grease 25 g tube Berulub Sihaf 2
117934 01/2000 Tap grease 5 g pouch Berulub Sihaf 2
15 127272 01/2000 Teflon ring
16 127273 01/2000 Base chrome with gasket
17 127274 01/2000 O-Ring threaded pipe
18 127275 01/2000 Threaded rod
19 121656
(7 / H)
06/2007 Flexible hose 55 cm metal neutral 3/8"-M10x1 with integrated gasket without label
119913
(7 / H)
06/2007 Flexible hose C 55 cm metal M10x1 with integrated gasket (replaced by 121656)
116383
(7 / H)
06/2007 Flexible hose 50 cm metal M10x1 with integrated gasket (replaced by 119913)
127276
(0 / A)
01/2000 Flexible hose 50 cm metal without gasket (replaced by 116383)
20 126945 01/2000 Stabilization triangle kitchen fitprewtergs plastic
21 116400 06/2007 Assembly set
127277 01/2000 Assembly set
22 124881 01/2000 Weight (445g)
123888 01/2000 Weight (420g) (replaced by 124881)
128707 01/2000 Weight (221g) Ø14 mm (replaced by 123888)
126947 01/2000 Weight (246g) (replaced by 128707 or 125764)
23 116385
(7 / H)
06/2007 Flexible hose A 41 cm metal white flow regulator with gasket
127279
(0 / A)
01/2000 Flexible hose mains connection 41 cm metal without gasket (replaced by 116385)
24 119534 01/2000 Non-return valve Ø 15 mm with screen gasket
127280 01/2000 Double non-return valve + fiber gasket (replaced by 119534)
25 127281 01/2000 T-piece with gaskets IT 3/8", IT M15x1 and AG 3/8"
26 127397 01/2000 Jet splitter LP chrome OT M24x1, Low pressure

Spareparts
117501 01/2000 Seal aerator TT 11.0 x 15.0 x 1.5 mm
511324 01/2000 Aerator/distributor key
27 128486 01/2000 Jet disc black OT without jet regulator, Low Pressure
28 128245 01/2000 Lip seal (replaced by 127398)
513383 01/2000 Additional stabilising plate for taps 60mm
513384 01/2000 Additional stabilising plate for taps 75mm
511920 01/2000 Protection device for spray hose of mixer tap
120055 01/2000 Flexible sealing tape (3 x 150 mm)
