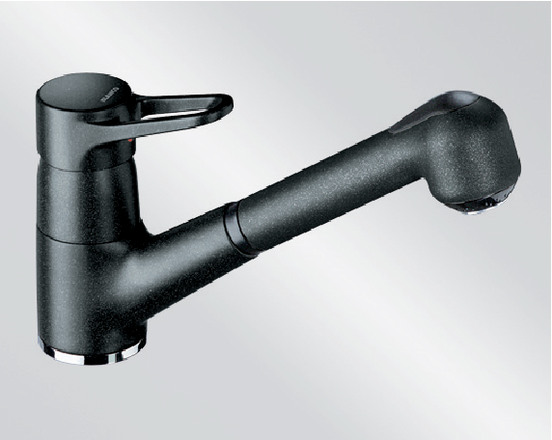

BLANCO PALLAS-S (Mix 3030 S), brass SILGRANIT-Look, anthracite, Low pressure

BLANCO PALLAS-S (Mix 3030 S), brass SILGRANIT-Look, anthracite, Low pressure

                    Article Number
                    138028


Mixer tap available from 01.01.1996 until 31.12.1999!
no longer available since 01/2000

Article-Version: Article also available in other versions!

BLANCO PALLAS-S (Mix 3030 S), brass SILGRANIT-Look, impala, Low pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name

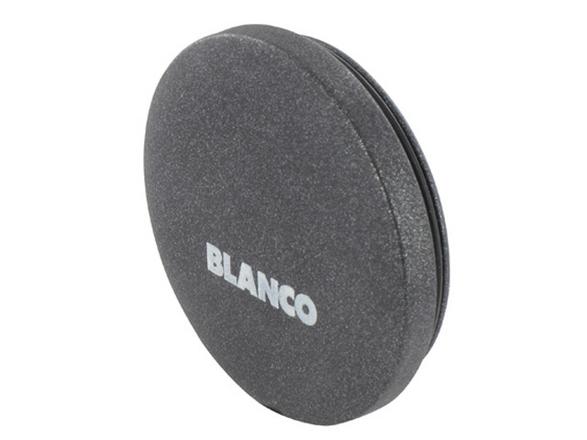

Position Number	1	Art. ID	126091	Valid From	01/1996	Name	Cover for lever PALLAS anthracite NB, anthracite
Position Number		Art. ID	126131	Valid From	01/1996	Name	O-ring cover PALLAS NB
Position Number		Art. ID	126132	Valid From	01/1996	Name	Locking screw NB
Position Number		Art. ID	126099	Valid From	01/1996	Name	Lever PALLAS anthracite dark NB, anthracite
Position Number	2	Art. ID	126133	Valid From	01/1996	Name	Color cap lever PALLAS blue/red NB
Position Number	3	Art. ID	119362	Valid From	01/1996	Name	Hex socket screw for lever 2,5 mm NF+DV
Position Number		Art. ID	123285	Valid From	01/1996	Name	Hex socket screw for lever 2,5 mm VE (replaced by 119362)
Position Number		Art. ID	125742	Valid From	01/1996	Name	Hex socket screw for lever M5x6 2,5 mm HA (replaced by 123285)
Position Number		Art. ID	139188	Valid From	01/1996	Name	Box spanner hex key AF 2,5 mm

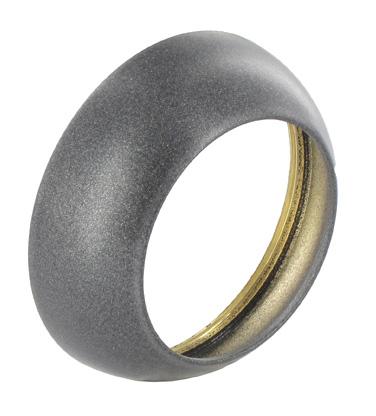

Position Number	4	Art. ID	126108	Valid From	01/1996	Name	Cover ring PALLAS anthracite dark NB
Position Number	5	Art. ID	126110	Valid From	01/1996	Name	Locknut cartridge PALLAS NB
Position Number	6	Art. ID	128570	Valid From	01/1996	Name	Cartridge LP ACTIS, ATOS-S, PALLAS NB, black, Low pressure
Position Number		Art. ID	126135	Valid From	01/1996	Name	Cartridge LP (replaced by 128570), black, Low pressure
Position Number	7	Art. ID	127254 (A)	Valid From	01/1996	Name	Spray head PALLAS-S LP anthracite complete colourindex A SILGRANIT-Look, anthracite, Low pressure
Position Number		Art. ID	126076	Valid From	01/1996	Name	Spray head PALLAS-S LP anthracite complete (replaced by 127254) NB SILGRANIT-Look, anthracite, Low pressure
Position Number		Art. ID	511324	Valid From	01/1996	Name	Key for jet regulator/-splitter (1 piece)
Position Number	8	Art. ID	125763	Valid From	11/2007	Name	Spray pipe complete with seals and o-ring 150 cm metal HA
Position Number		Art. ID	126934	Valid From	11/2007	Name	Spray hose ATOS,COMET,ORION,PALLAS,WEGA 150 cm metal (replaced by 125763)
Position Number		Art. ID	126117	Valid From	01/1996	Name	Spray hose PALLAS-S 150 cm metal (replaced by 126934) NB
Position Number	9	Art. ID	125928	Valid From	01/1996	Name	Fitting piece spray head ARGON, MIRA black
Position Number		Art. ID	126136	Valid From	01/1996	Name	Fitting piece spray head (replaced by 125928) NB
Position Number	11	Art. ID	126078	Valid From	01/1996	Name	Cartridge seat PALLAS-S LP with pipes
Position Number	12	Art. ID	126138	Valid From	01/1996	Name	Inner body PALLAS-S LP NB
Position Number		Art. ID	126114	Valid From	01/1996	Name	Screw PALLAS-S NB
Position Number	15	Art. ID	126113	Valid From	01/1996	Name	Body seal PALLAS-S NB
Position Number		Art. ID	117933	Valid From	01/1996	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/1996	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	21	Art. ID	126115	Valid From	01/1996	Name	Assembly set PALLAS-S NB
Position Number	24	Art. ID	126141	Valid From	01/1996	Name	Flow limiter PALLAS-S LP NB, white
Position Number		Art. ID	126142	Valid From	01/1996	Name	Nut flow limiter PALLAS-S LP with seal
Position Number		Art. ID	126143	Valid From	01/1996	Name	Double non-return valve fiber sael ATOS,COMET,PALLAS
Position Number		Art. ID	126144	Valid From	01/1996	Name	Seal flow regulator PALLAS-S LP
Position Number	25	Art. ID	116490	Valid From	01/1996	Name	Seal spray hose top 19 x 14 x 2 mm MZ
Position Number		Art. ID	116496	Valid From	01/1996	Name	Gasket 8,0x13,3x2,0mm EPDM NE
Position Number		Art. ID	125166	Valid From	01/1996	Name	Seal for spray head top (replaced by 116490) MZ
Position Number		Art. ID	126128	Valid From	01/1996	Name	Seal for spray head cap nut (replaced by 125166) NB
Position Number		Art. ID	125167	Valid From	01/1996	Name	Seal flexible pipe bottom (replaced by 116496) MZ
Position Number		Art. ID	126119	Valid From	01/1996	Name	Hose seal PALLAS-S (replaced by 125167) NB
Position Number		Art. ID	127281	Valid From	01/1996	Name	T-connector with gaskets IG 3/8", IG M15x1 and AG 3/8" BL
Position Number		Art. ID	126145	Valid From	01/1996	Name	T-piece PALLAS-S LP (replaced by 127281) NB
Position Number		Art. ID	126146	Valid From	01/1996	Name	Seal non-return valve PALLAS-S LP
Position Number		Art. ID	513383	Valid From	01/1996	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/1996	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/1996	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	01/1996	Name	Flexible sealing tape
