BLANCO PALLAS-S (Mix 3030 S), brass SILGRANIT-Look, sand, Low pressure

BLANCO PALLAS-S (Mix 3030 S), brass SILGRANIT-Look, sand, Low pressure

                    Article Number
                    138024


Mixer tap available from 01.01.1996 until 31.12.1999!
no longer available since 01/2000

Article-Version: Article also available in other versions!

BLANCO PALLAS-S (Mix 3030 S), brass SILGRANIT-Look, impala, Low pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name

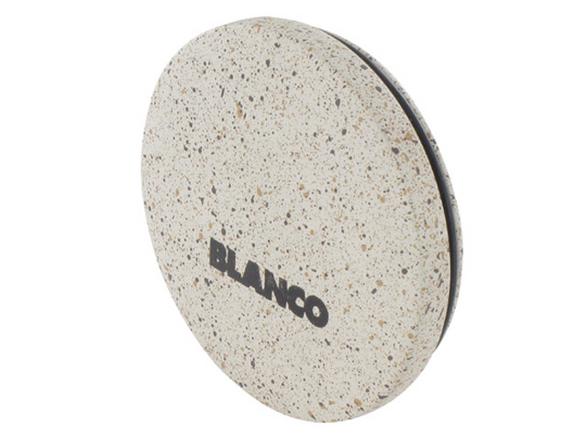

Position Number	1	Art. ID	126088	Valid From	01/1996	Name	Cover lever Sand, sand
Position Number		Art. ID	126131	Valid From	01/1996	Name	O-Ring lid
Position Number		Art. ID	126132	Valid From	01/1996	Name	Locking screw

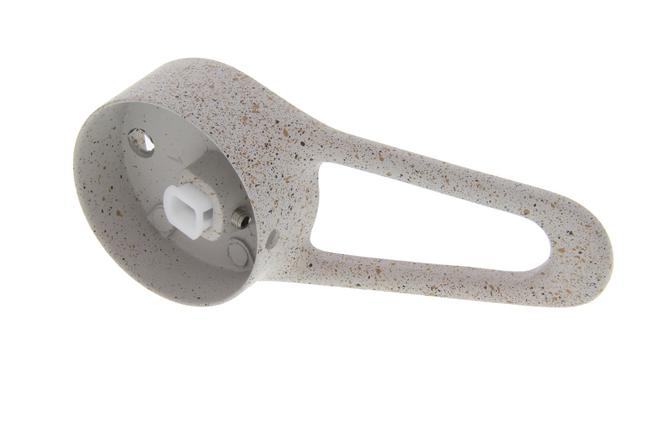

Position Number		Art. ID	126096	Valid From	01/1996	Name	Lever sand, sand
Position Number	2	Art. ID	126133	Valid From	01/1996	Name	Color cap lever blue/red
Position Number	3	Art. ID	119362	Valid From	01/1996	Name	Screw lever hexagon socket 2.5 mm
Position Number		Art. ID	123285	Valid From	01/1996	Name	Screw lever hexagon socket 2.5 mm (replaced by 119362)
Position Number		Art. ID	125742	Valid From	01/1996	Name	Screw lever M5x6 hexagon socket 2.5 mm (replaced by 123285)
Position Number		Art. ID	139188	Valid From	01/1996	Name	Hex key SW 2.5 mm

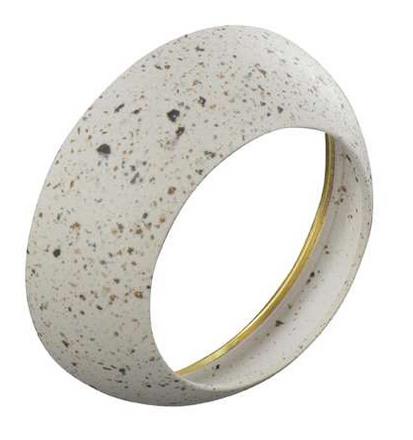

Position Number	4	Art. ID	126105	Valid From	01/1996	Name	Cover ring sand
Position Number	5	Art. ID	126110	Valid From	01/1996	Name	Cartridge lock nut
Position Number	6	Art. ID	128570	Valid From	01/1996	Name	Kartusche ND 40 mm, black, Low pressure
Position Number		Art. ID	126135	Valid From	01/1996	Name	Kartusche ND 40 mm (ersetzt durch 128570), black, Low pressure

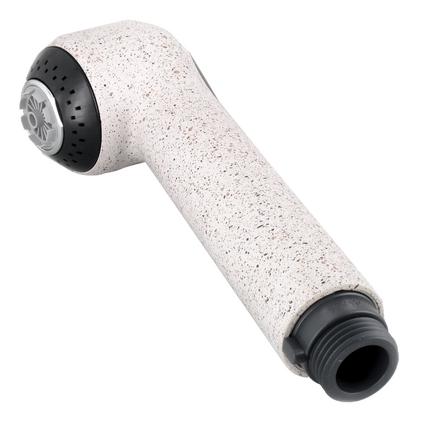

Position Number	7	Art. ID	126073	Valid From	01/1996	Name	Spray head LP silgranit brown SILGRANIT-Look, sand, Low pressure
Position Number		Art. ID	511324	Valid From	01/1996	Name	Aerator/distributor key
Position Number	8	Art. ID	125763	Valid From	11/2007	Name	Spray hose 150 cm metal with gaskets and O-ring
Position Number		Art. ID	126934	Valid From	11/2007	Name	Spray hose 150 cm metal (replaced by 125763)
Position Number		Art. ID	126117	Valid From	01/1996	Name	Spray hose 150 cm metal (replaced by 126934)
Position Number	9	Art. ID	125928	Valid From	01/1996	Name	Fitprewterg piece black
Position Number		Art. ID	126136	Valid From	01/1996	Name	Fitprewterg piece (replaced by 125928)
Position Number	11	Art. ID	126078	Valid From	01/1996	Name	Cartridge seat LP with pipes
Position Number	12	Art. ID	126138	Valid From	01/1996	Name	Inner body LP
Position Number		Art. ID	126114	Valid From	01/1996	Name	Screw
Position Number	15	Art. ID	126113	Valid From	01/1996	Name	Body seal
Position Number		Art. ID	117933	Valid From	01/1996	Name	Tap grease 25 g tube Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/1996	Name	Tap grease 5 g pouch Berulub Sihaf 2
Position Number	21	Art. ID	126115	Valid From	01/1996	Name	Assembly set
Position Number	22	Art. ID	124881	Valid From	01/1996	Name	Weight (445g)
Position Number		Art. ID	123888	Valid From	01/1996	Name	Weight (420g) (replaced by 124881)
Position Number		Art. ID	128707	Valid From	01/1996	Name	Weight (221g) Ø14 mm (replaced by 123888)
Position Number	24	Art. ID	126141	Valid From	01/1996	Name	Flow limiter LP, white
Position Number		Art. ID	126142	Valid From	01/1996	Name	Flow limiter with housing and gasket
Position Number		Art. ID	126143	Valid From	01/1996	Name	Double non-return valve + fiber gasket
Position Number		Art. ID	126144	Valid From	01/1996	Name	Seal flow restrictor
Position Number	25	Art. ID	116490	Valid From	01/1996	Name	Seal spray hose above 19 x 14 x 2 mm
Position Number		Art. ID	116496	Valid From	01/1996	Name	Seal 8.0x13.3x2.0 mm EPDM
Position Number		Art. ID	125166	Valid From	01/1996	Name	Seal spray hose above (replaced by 116490)
Position Number		Art. ID	126128	Valid From	01/1996	Name	Seal spray hose union nut (replaced by 125166)
Position Number		Art. ID	125167	Valid From	01/1996	Name	Seal spray hose below (replaced by 116496)
Position Number		Art. ID	126119	Valid From	01/1996	Name	Hose gasket (replaced by 125167)
Position Number		Art. ID	127281	Valid From	01/1996	Name	T-piece with gaskets IT 3/8", IT M15x1 and AG 3/8"
Position Number		Art. ID	126145	Valid From	01/1996	Name	T-piece (replaced by 127281)
Position Number		Art. ID	126146	Valid From	01/1996	Name	Seal check valve
Position Number		Art. ID	513383	Valid From	01/1996	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/1996	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/1996	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	01/1996	Name	Flexible sealing tape (3 x 150 mm)
