BLANCO PALLAS-S, brass SILGRANIT-Look, polar, Low pressure

BLANCO PALLAS-S, brass SILGRANIT-Look, polar, Low pressure

                    Article Number
                    511459


Mixer tap available from 01.01.2000 until 31.08.2002!
no longer available since 08/2003

Article-Version: Article also available in other versions!

BLANCO PALLAS-S (Mix 3030 S), brass SILGRANIT-Look, anthracite, Low pressure

Added to Your Shopping Cart

Spare Parts

Valid From	Name

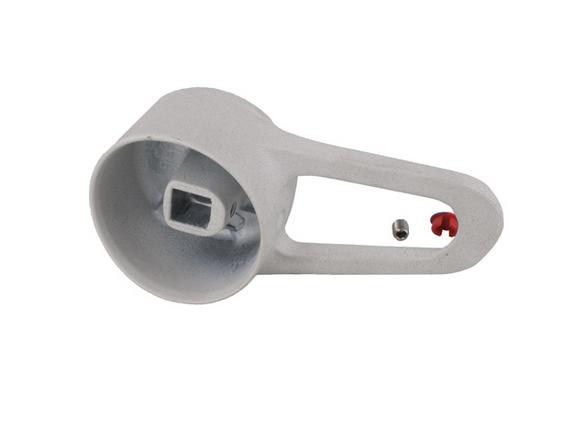

Position Number	1	Art. ID	127227	Valid From	01/2000	Name	Lever PALLAS polar complete, polar
Position Number	2	Art. ID	126959	Valid From	01/2000	Name	Color cap lever MZ
Position Number	3	Art. ID	116803	Valid From	01/2000	Name	Hex socket screw for lever M5x6 2,5 mm AV
Position Number		Art. ID	116503	Valid From	01/2000	Name	Screw lever conical 2,5 mm MZ (repalced by 116803)
Position Number		Art. ID	126960	Valid From	01/2000	Name	Screw lever (replaced by 116503) MZ
Position Number		Art. ID	139188	Valid From	01/2000	Name	Box spanner hex key AF 2,5 mm

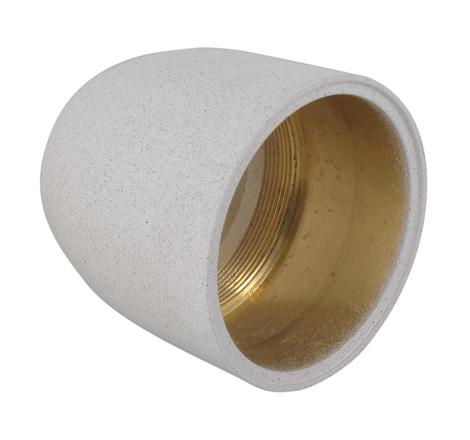

Position Number	4	Art. ID	127237	Valid From	01/2000	Name	Cover ring PALLAS-S polar
Position Number	5	Art. ID	127246	Valid From	01/2000	Name	Locknut cartridge PALLAS-S, ORION-S
Position Number		Art. ID	127433	Valid From	01/2000	Name	Cartridge spanner wrench size = 30 mm and 36 mm, stainless steel
Position Number	6	Art. ID	121492	Valid From	01/2000	Name	Cartridge LP 40 mm KE, blue, Low pressure
Position Number		Art. ID	120089	Valid From	01/2000	Name	Cartridge 40 mm LP KI (replaced by 121492), blue, Low pressure
Position Number		Art. ID	116646	Valid From	01/2000	Name	Cartridge ND (replaced by 120089) MZ, grey, Low pressure

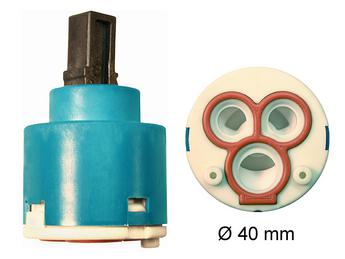

Position Number		Art. ID	127247	Valid From	01/2000	Name	Cartridge LP (replaced by 116646), blue, Low pressure

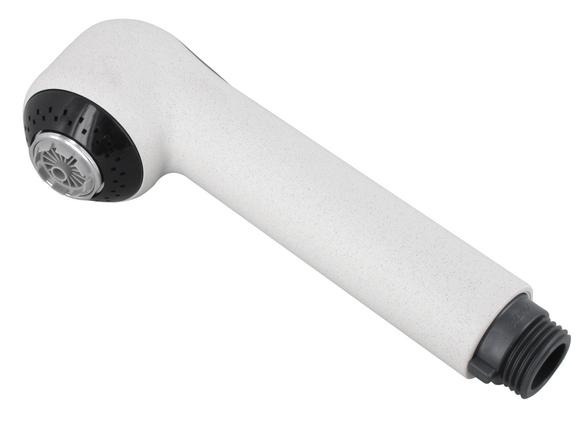

Position Number	7	Art. ID	127249	Valid From	01/2000	Name	Spray head PALLAS-S LP polar complete SILGRANIT-Look, polar, Low pressure
Position Number	8	Art. ID	125763	Valid From	01/2000	Name	Spray pipe complete with seals and o-ring 150 cm metal HA
Position Number		Art. ID	126934	Valid From	01/2000	Name	Spray hose ATOS,COMET,ORION,PALLAS,WEGA 150 cm metal (replaced by 125763)
Position Number	9	Art. ID	127991 (3 / D)	Valid From	01/2000	Name	Fitting piece spray head ORION, PALLAS black
Position Number		Art. ID	126935 (0 / A)	Valid From	01/2000	Name	Fitting piece spray head black

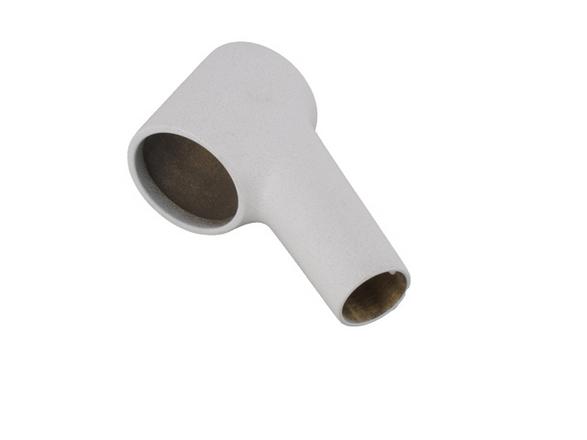

Position Number	10	Art. ID	128104	Valid From	07/2001	Name	Outer body PALLAS-S polar with hole
Position Number		Art. ID	127259	Valid From	01/2000	Name	Outer body PALLAS-S polar with hole

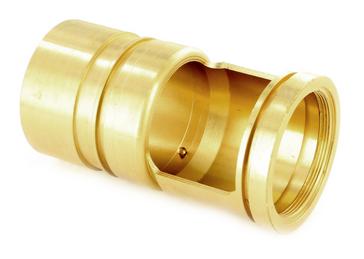

Position Number	12	Art. ID	127269	Valid From	01/2000	Name	Inner body ORION-S, PALLAS-S
Position Number	13	Art. ID	127271	Valid From	01/2000	Name	Teflon ring ORION-S, PALLAS-S
Position Number	14	Art. ID	127270	Valid From	01/2000	Name	O-ring ORION-S, PALLAS-S
Position Number		Art. ID	117933	Valid From	01/2000	Name	Grease for mixer tap 25g Berulub Sihaf 2
Position Number		Art. ID	117934	Valid From	01/2000	Name	Grease for mixer tap 5g Berulub Sihaf 2
Position Number	15	Art. ID	127272	Valid From	01/2000	Name	Teflon ring ORION-S, PALLAS-S
Position Number	16	Art. ID	127273	Valid From	01/2000	Name	Base ORION-S, PALLAS-S chrome with seal

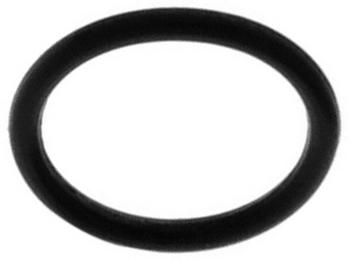

Position Number	17	Art. ID	127274	Valid From	01/2000	Name	O-ring threaded pipe ORION, PALLAS MZ

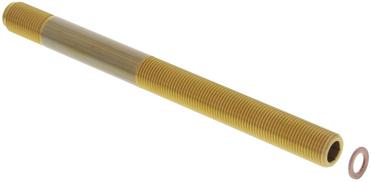

Position Number	18	Art. ID	127275	Valid From	01/2000	Name	Thread rod ORION-S, PALLAS-S
Position Number	19	Art. ID	121656 (7 / H)	Valid From	06/2007	Name	Flexible hose neutral with integrated gasket without sticker 55 cm metal 3/8" x M 10 x 1 (NF)
Position Number		Art. ID	119913 (7 / H)	Valid From	06/2007	Name	Flexible hose C with integrated seal 55 cm metal M10x1 BL (NF) (replaced by 121656)

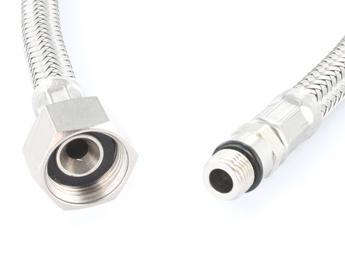

Position Number		Art. ID	116383 (7 / H)	Valid From	06/2007	Name	Flexible hose with integrated seal 50 cm metal M10x1 (replaced by 119913) MZ
Position Number		Art. ID	127276 (0 / A)	Valid From	01/2000	Name	Flexible hose without seal LP ORION-S, PALLAS-S 50 cm metal (replaced by 116383)
Position Number	20	Art. ID	126945	Valid From	01/2000	Name	Stabilization triangle mixer taps BLANCO
Position Number	21	Art. ID	116400	Valid From	06/2007	Name	Assembly set ORION-S, PALLAS-S MZ
Position Number		Art. ID	127277	Valid From	01/2000	Name	Assembly set ORION-S, PALLAS-S
Position Number	22	Art. ID	124881	Valid From	01/2000	Name	Weight for shower hose (445g)
Position Number		Art. ID	123888	Valid From	01/2000	Name	Weight for shower hose (420g) AV (replaced by 124881)
Position Number		Art. ID	128707	Valid From	01/2000	Name	Weight (221g) BL(NF) (repalced by 123888)
Position Number		Art. ID	126947	Valid From	01/2000	Name	Weight ORION, PALLAS, SIRIUS, WEGA (246g) (replaced by 125764 or 128707)

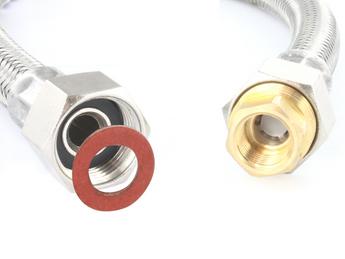

Position Number	23	Art. ID	116385 (7 / H)	Valid From	06/2007	Name	Flexible hose A white flow regulator complete with seal 41 cm metal MZ

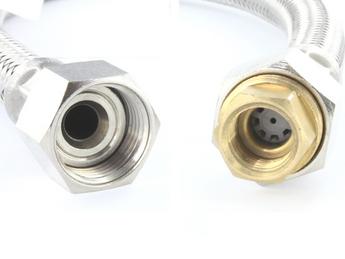

Position Number		Art. ID	127279 (0 / A)	Valid From	01/2000	Name	Flexible hose net complete without seal LP ORION, PALLAS 41 cm metal (replaced by 116385)

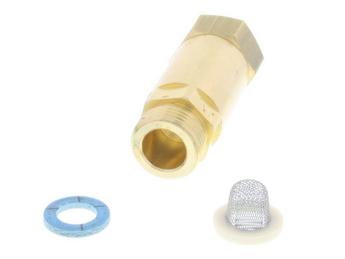

Position Number	24	Art. ID	119534	Valid From	01/2000	Name	Non-return valve complete with gasket/mud guard MZ
Position Number		Art. ID	127280	Valid From	01/2000	Name	Double non-return valve + fiber seal (replaced by 119534)
Position Number	25	Art. ID	127281	Valid From	01/2000	Name	T-connector with gaskets IG 3/8", IG M15x1 and AG 3/8" BL
Position Number	26	Art. ID	127397	Valid From	01/2000	Name	Jet splitter LP OT M24x1 AF22 chrome AM, Low pressure Spareparts
Position Number		Art. ID	117501	Valid From	01/2000	Name	Seal for Jet regulator 15.0 x 21.45 x 2.8 mm BL (NE)
Position Number		Art. ID	511324	Valid From	01/2000	Name	Key for jet regulator/-splitter (1 piece)
Position Number	27	Art. ID	128486	Valid From	01/2000	Name	Jet disc PALLAS-S black with external thread, Low Pressure
Position Number	28	Art. ID	128245	Valid From	01/2000	Name	Copper seal Ø= 9,7 mm
Position Number		Art. ID	513383	Valid From	01/2000	Name	Additional stabilising plate for taps 60mm
Position Number		Art. ID	513384	Valid From	01/2000	Name	Additional stabilising plate for taps 75mm
Position Number		Art. ID	511920	Valid From	01/2000	Name	Protection device for spray hose of mixer tap
Position Number		Art. ID	120055	Valid From	01/2000	Name	Flexible sealing tape
