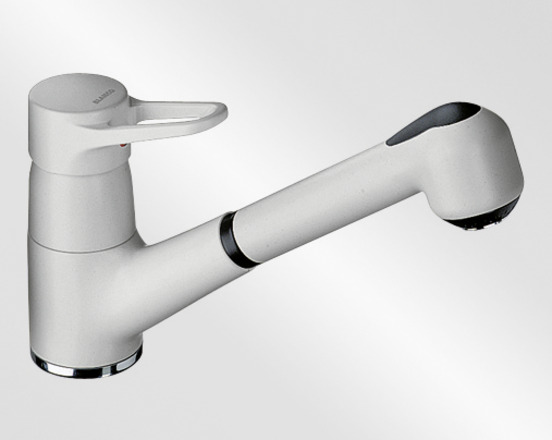

BLANCO PALLAS-S, brass SILGRANIT-Look, silk grey, Low pressure
Article Number 514969
Mixer tap available from 01.10.2007 until 30.09.2009!
no longer available since 09/2009
1 117055 10/2007 Lever silk grey, silk grey
2 126959 10/2007 Color cap lever
3 116803 10/2007 Screw lever M5x6 hexagon socket 2.5 mm
116503 10/2007 Screw lever M5x6 conical 2.5 mm (replaced by 116803)
126960 10/2007 Screw lever (replaced by 116503)
139188 10/2007 Hex key SW 2.5 mm

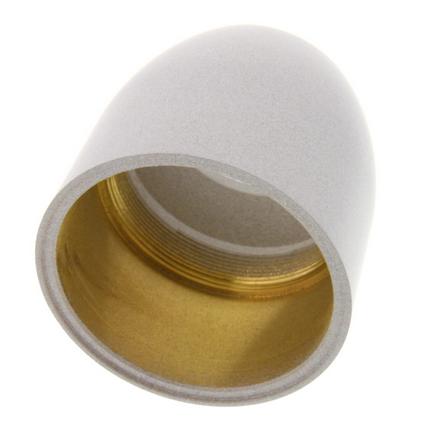

4 117064 10/2007 Cover ring satin grey
5 127246 10/2007 Cartridge lock nut
127433 10/2007 Cartridge spannerhex SW 30 mm and 36 mm
6 121492 10/2007 Kartusche ND 40 mm, blue, Low pressure
120089 10/2007 Kartusche ND 40 mm (ersetzt durch 121492), blue, Low pressure
116646 10/2007 Kartusche ND 40 mm (ersetzt durch 120089), grey, Low pressure

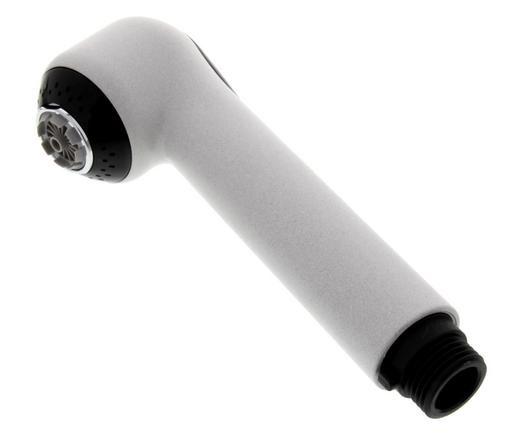

7 117380 10/2007 Spray head LP silk grey SILGRANIT-Look, silk grey, Low pressure
8 125763 10/2007 Spray hose 150 cm metal with gaskets and O-ring
126934 10/2007 Spray hose 150 cm metal (replaced by 125763)
9 127991 10/2007 Fitprewterg piece black

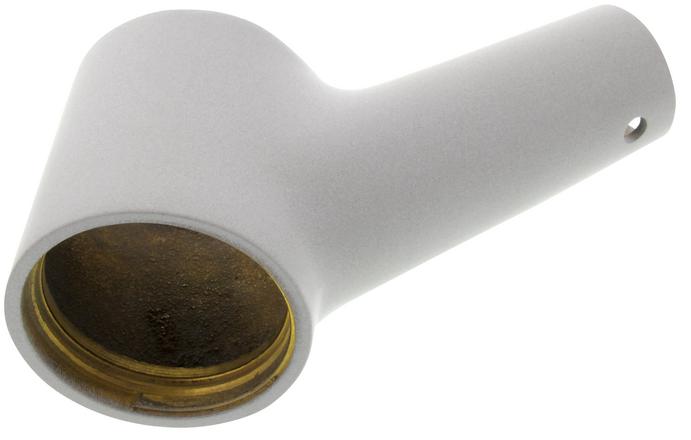

10 117068 10/2007 Outer body silk grey
12 127269 10/2007 Inner body
13 127271 10/2007 Teflon ring
14 127270 10/2007 O-ring
117933 10/2007 Tap grease 25 g tube Berulub Sihaf 2
117934 10/2007 Tap grease 5 g pouch Berulub Sihaf 2
15 127272 10/2007 Teflon ring
16 127273 10/2007 Base chrome with gasket
17 127274 10/2007 O-Ring threaded pipe
18 127275 10/2007 Threaded rod
19 121656 10/2007 Flexible hose 55 cm metal neutral 3/8"-M10x1 with integrated gasket without label
119913 10/2007 Flexible hose C 55 cm metal M10x1 with integrated gasket (replaced by 121656)
116383 10/2007 Flexible hose 50 cm metal M10x1 with integrated gasket (replaced by 119913)
20 126945 10/2007 Stabilization triangle kitchen fitprewtergs plastic
21 116400 10/2007 Assembly set
22 124881 10/2007 Weight (445g)
123888 10/2007 Weight (420g) (replaced by 124881)
128707 10/2007 Weight (221g) Ø14 mm (replaced by 123888)
126947 10/2007 Weight (246g) (replaced by 128707 or 125764)
23 116385 10/2007 Flexible hose A 41 cm metal white flow regulator with gasket
24 119534 10/2007 Non-return valve Ø 15 mm with screen gasket
127280 10/2007 Double non-return valve + fiber gasket (replaced by 119534)
25 127281 10/2007 T-piece with gaskets IT 3/8", IT M15x1 and AG 3/8"
26 127397 10/2007 Jet splitter LP chrome OT M24x1, Low pressure

Spareparts
117501 10/2007 Seal aerator TT 11.0 x 15.0 x 1.5 mm
511324 10/2007 Aerator/distributor key
27 128486 10/2007 Jet disc black OT without jet regulator, Low Pressure
28 128245 10/2007 Lip seal (replaced by 127398)
513383 10/2007 Additional stabilising plate for taps 60mm
513384 10/2007 Additional stabilising plate for taps 75mm
511920 10/2007 Protection device for spray hose of mixer tap
120055 10/2007 Flexible sealing tape (3 x 150 mm)
